OEM Or ODM Cast Iron Grey Iron GG20 Iron Casting Parts For Engine
Bracket
Quick Detail:
· Grey Iron Casting Bracket
· Grey iron HT200, GG20
· Sand Casting
· Shot Blasting surface
· Construction Machinery
There are many different gray iron grades by different countries
and standards, you can check in following table.
| Grey Iron Material Grade from TwinkleIndustrial between China,
Russia, USA, England, France, Germany, Japan, ISO standard. |
| No. | China/GB 699 | Russia/ROCT | USA/ASTM A536 | England/BS | France/NF | Germany/DIN | Japan/JIS | ISO 683/1 |
| 1 | HT100 | BЧ10 | | 100 | | | FC100 | 100 |
| 2 | HT150 | BЧ15 | No. 20 | 150 | FGL150 | GG15 | FC150 | 150 |
| 3 | HT200 | BЧ20 | No. 30 | 200 | FGL200 | GG20 | FC200 | 200 |
| 4 | HT250 | BЧ25 | No. 35 | 250 | FGL250 | GG25 | FC250 | 250 |
| 5 | HT300 | BЧ30 | No. 45 | 300 | FGL300 | GG30 | FC300 | 300 |
| 6 | HT350 | BЧ35 | No. 50 | 350 | FGL350 | GG35 | FC350 | 350 |
| 7 | | BЧ40 | No. 60 | | FGL400 | GG40 | | |
Product Description:

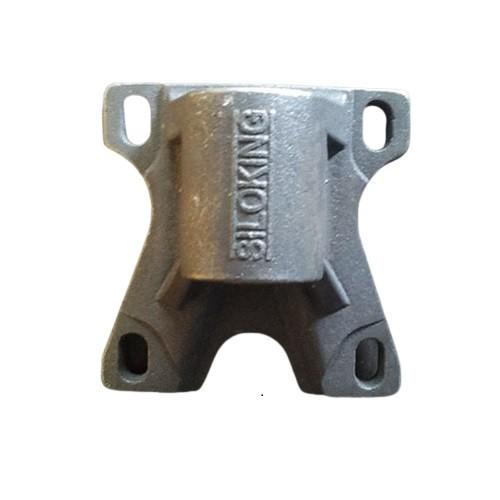

The cast iron bracket for engine is made of cast iron, HT200. The
surface is plain after shot blasting. The mould can be used to
produce by 30000pcs and you just need to pay one time mould. We can
keep and make new mould for next orders.
Product Specifications:
| Commodity | Iron Casting & Machining Parts / Gear Cap |
| Standard | ASTM, DIN, JIS, EN, ISO, BS, JCSI, GB |
| Material | Grey iron (HT200,HT250,HT300), Ductile iron
(QT400-18,QT400-15,QT450-10,QT500-7) |
| Unit Weight | 0,05 kg ~ 1,000 kg. |
| Tolerance | CT6-CT8 |
| Machining | Turning, Milling, Drilling, Cutting, Reaming, Threading, Welding,
Tooling, etc |
| Surface Treatment | Shot blasting, Painting, Powder coating, Electroplating, Chrome
plating, etc |
| Package | Standard wooden box package or as your customized package |
| Applications | Agricultural machinery, Petroleum machinery, Mining machines,
Construction, Automotive & Truck, Medical, Marine, Railway & Train,
Power lines, Furniture, Lighting, Flange, Valve and Pump,
Electronic, Pipeline, etc. |
| Brand | Twinkle Industrial |
Product Applications:
Widely used agricultural machinery, petroleum machinery, mining
machines, construction, automotive & truck, medical, marine,
railway & train, power lines, furniture, lighting, flange, valve
and pump, electronic, pipeline, etc.
FAQ
Q1. How can we get a quotation?
A: Please send the parts 2D drawing (in PDF format) and 3D model in
IGS or STP format together with material, production technique,
purchasing qty, etc, or provide sample to us.
Q2. What about the lead time?
A: 15-20 days for Sample making ,20 working days for mass
production.
Q3. Do you have any MOQ limit for casting parts?
A: It depends on different parts. For some parts, 1 pc can be
acceptable.
Q4. What is your payment term?
A: Mold: 50% payment in advance, balance after the sample approval.
B: Mass production: 30% payment in advance, 70% balance before
shipment.
Q5. What is your quality control process?
A: Each casting parts will be provided with raw material report (
chemical composition and physical property), and dimension
measuring report before shipment.
Q6. How about the packaging?
A: Standard wooden box package or as your customized package.
